Enairys has developed a dedicated electrical power conditioning and management module for HyPES systems, thanks to its high expertise in the conversion and management of electrical power. This module is mainly characterized by a modular and flexible topology, which allows easily adapting these systems to a wide range of applications and meeting any power quality requirement.
HyPES systems are capable of operating in both grid-tied (grid synchronisation) or off-grid (or island) modes. Two main coupling methods to electrical sources and loads are possible: External AC coupling or Internal DC coupling as illustrated below.

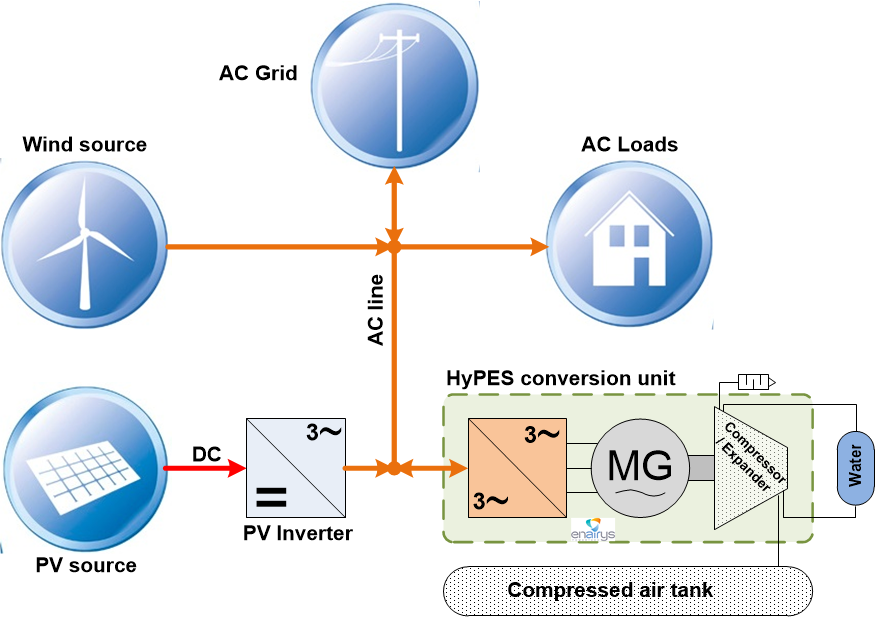

AC Coupling Topology

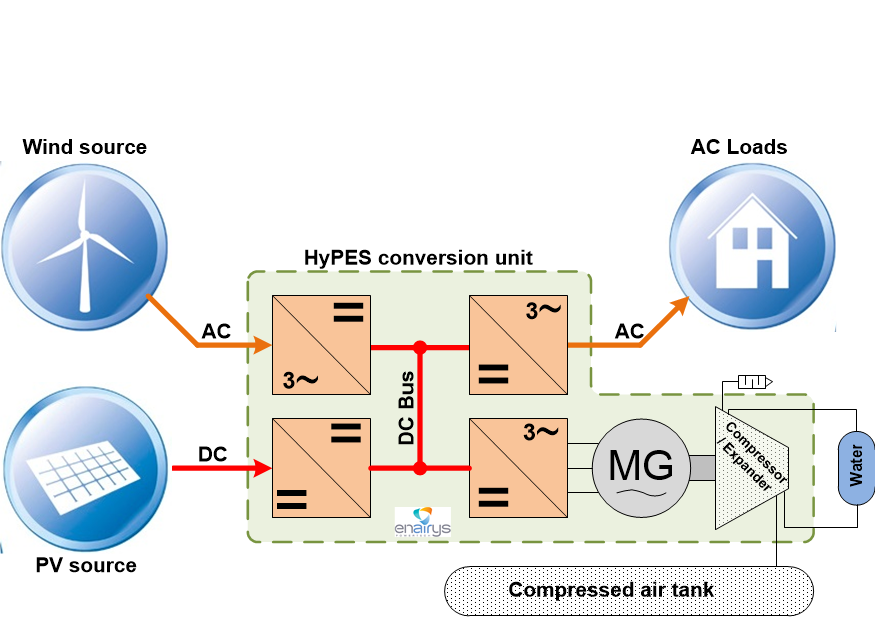

DC Coupling Topology
AC coupling topology would be mostly suitable for grid-tied applications while DC coupling topology would be mostly suitable for off-grid applications. Nevertheless, it is also possible to use AC coupling for off-grid applications.
